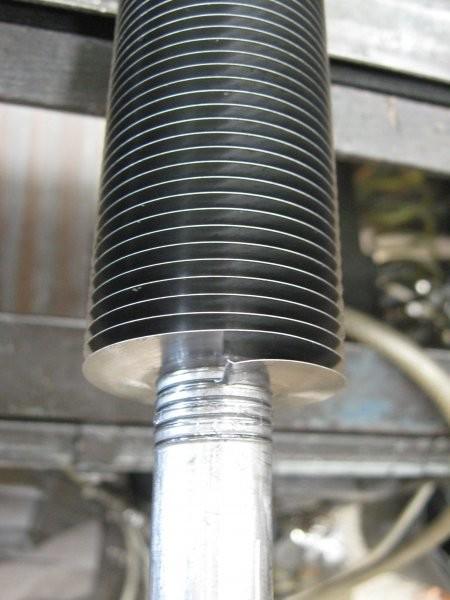

Extruded Embedded Type Longitudinal Spiral Square Heat Exchanger Coil Aluminium Copper Fin Tube

Quick Detail:

Manufacturing process

The aluminum fin strip is tension wound and placed into a groove cut into the tube with appr. 0.4mm fluted depth.

Surface Protection of Plain Ends

Both ends of Grooved G type Fin Tubes shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.

Acceptance criteria

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).

Accessories

Tube support box, clamp or spacer box (Materials: Aluminum, Zinc and Stainless Steel).

Delivery condition:

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of G-Fin Embedded Finned Tube.

The desiccants are put into each package for continental transporation as well.

Applications:

The common application fields are:

1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
3. The petroleum, chemical and petrochemical industries;
4. The food processing and refrigeration industries;
5. Natural gas treatment;

Specifications:

Grooved G type Finned Tubes are combined with two different materials.

ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service

ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes

Steel Grade: Grade A1; Grade C

Delivery Condition: Annealed, Normalized, Normalized and Tempered

About Reliance

Jiangsu Reliance Thermal Equipment Co., Ltd is all about thermal transfer finned tubes products. We have a long-term fabrication and supply experience in the business of FINING MACHINES and FINNED TUBES used in air-cooled heat exchanger, economizers, boilers, gas turbines, refining and petrochemical industries ect.

Advantages

• One-stop manufacturer shop from core tube supply to fin tube machines
• ISO 9001:2015 certified company
• Experienced and dedicated management and qualfied manpower
• Quickest response, competitive price, highese quality and shortest schedule
• Tube stock availability for general grades of carbon steel and stainless steel
• Technical support services for fin tube machines and replacement accessories

FINNED TUBES PRODUCTS & SERVICE AVAILABLE

Fabrication Capacities

(1)  Fourteen extrusion fining lines, daily capacity around 15,000 meters

(2)  Five type L/LL/KL fining lines, daily capacity around 5000 meters

(3)  Seven G- base fining lines, daily capacity around 7000 meters

(4)  Two ERW studding lines, daily capacity around 80000 studs

(5)  Four ERW High Frequency Spiral fining lines, daily capacity around 30 tons

(6)  Three bending machines, maximum capacity 76X4

(7)  Five DC ERW H/HH fining lines, daily capacity around 20 tons

(8)  One PLC high speed punch presser

Reliance have become a qualified manufacturer and reliable supplier for high-quality thermal transfer finned tubes used in air-cooled heat exchanger,economizers,boilers,gas turbines,refining and petrochemical industries ect.

If you are interested in any of our products, please do not hestitate to contact us @reliancemfg@126.com
